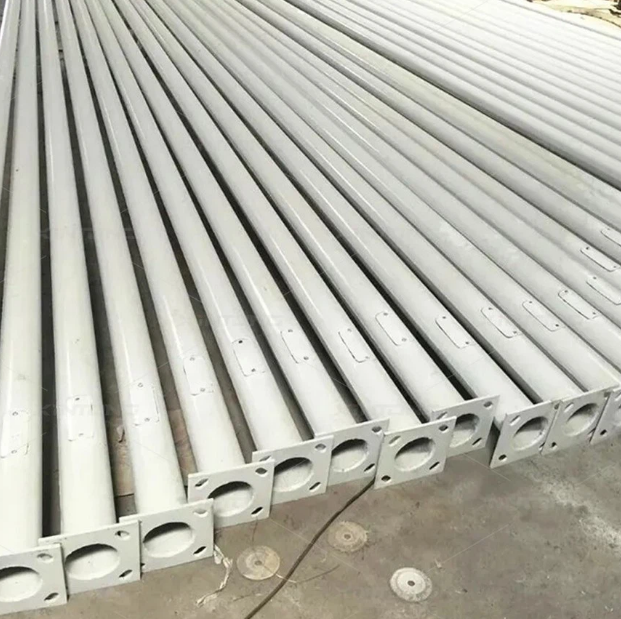

Road / Municipal / Plant / UV Curing Lighting LED driver & Light poles

Family series products Efficiency up to 96% IP67/IP65/IP42  Lightning protection level up to 15KV Output short circuit protection, undervoltage protection,  overtemperature protection, overload protection, etc. Life warning, soft start, light decay compensation  five-year warranty

Plants/Sports/Marine Fisheries/UV Curing Lighting LED driver & Light poles

Adopting third-generation semiconductor advanced device technology A number of patented technologies to improve product performance  and reduce the size of the product Power density up to 11.53W/inch³ (1000W specification)  efficiency up to 96.5% Class I structure DC 12V auxiliary output as standard.  . . . . . . One-touch programming dimming IP67  Life warning、Soft start、Light decay compensation SCP,OVP,OTP,OCP protection 8 years warranty

Road/Municipal Lighting LED driver/Potentiometer/Programmable  Current Regulation

High power density, compact construction design Input voltage: 100-277Vac Output voltage: 25-56V, 36-56V constant power adjustable Provides low current high output voltage version 0.5-1.05A Lighting protection: differential mode 4KV, common mode 6KV(≤60W) differential mode 6KV, common mode 15KV(≥80W) IP67

Outdoor Waterproof Constant Voltage Power Supply

Road/municipal/explosion proof lighting LED driver/Potentiometer/ programmable current regulation

High power density, compact construction design Input voltage: 100-277Vac,180Vac with derating protection Output voltage: 25-56V, 36-56V constant power adjustable Provides low current high output voltage version 0.5-1.05A Lighting protection: differential mode 4KV, common mode 6KV(≤40W),differential  mode 6KV, common mode 15KV(≥50W) IP67  Lifetime warning, soft start, light decay compensation SCP,OVP,OTP,OCP protection 5 years warranty

European road lighting LED driver

CLASS Ⅰ、Ⅱcompatible Open structure, built-in mounting application Conforms to Zhaga Interface Specification 13 Conforms to Zhaga Interface Specification 24 NFC definition Input voltage: 200-277Vac Supports multiple dimming methods Lighting protection: differential mode 6KV, common mode 10KV IP20  Lifetime warning, soft start, light decay compensation SCP,OVP,UVP,OTP,OCP protection 5 years warranty

Road/tunnel/municipal lighting LED driver

Family series products High power density, compact housing design Class I application Input voltage: 200-277Vac IP67 Life warning, soft start, light decay compensation SCP,OVP,OTP,OCP protection  five-year warranty

Road/Tunnel/Municipal Lighting LED driver Potentiometer/Triple Dimming

Input voltage: 100-277Vac,180Vac with derating protection Output voltage: 20-38V/32-58V mainstream output voltage selectable,  32-38V/42-58V output voltage range power constant adjustable Lighting protection : 75W and below 4KV/6KV, 105W and above 6KV/15KV IP67 SCP,OVP,UVP,OTP protection 5 years warranty

Road/Tunnel/Municipal/Explosion-proof Lighting LED driver

Compact construction design Input voltage: 100-277Vac or 200-277Vac 20-38V (32-38V constant power) 32-58V (42-58V constant power) 0.5-1.05A  high voltage low current version Dimming logic: 0/1-10V 、0-5V dimming positive and negative logic optional Lighting protection : 75W and below 4KV/6KV, 100W and above 6KV/15KV IP67 SCP,OVP,UVP,OTP protection 5 years warranty

Built-in explosion-proof/tunnel/brightening lighting LED driver

Family series products Built-in applications Input voltage: 100-277Vac Output current adjustment: constant current output (not adjustable),  potentiometer adjusts output current five-year warranty

Industrial Lighting LED Driver

Rated input voltage:120-277Vac Output voltage:180-260Vdc,constant power voltage range@200-260V. Efficiency up to 95%/High PF≥0.95/THD≤10%@230VAC Low THD interference. Surge protection:4/4KV. Protection level: IP65. SCP/OTP/OVP/UVP protection . Life time>50,000 hrs.And 5 years warranty

Outdoor Waterproof Constant Voltage Power Supply

Rated input voltage:200～277V. 12V/24V/36V/48V Constant voltage output . Efficiency up to 94%/High PF>0.97/THD<10%@230Vac. Surge protection:4/6KV , 6/10KV. IP67. SCP/OTP/OVP protection. Life time>50,000 hrs. And 5 years warranty. Wide Voltage Product: A for regular version S for 1-10V 3-in-1 dimming function D for DALI2.0 dimming function

Waterproof Linear Constant Voltage Power Supply

Input Voltage: 200-240Vac. 12V/24V/36V/48V Constant voltage output.  Efficiency up to 89%/High PF>0.95/THD<10%@230Vac Surge protection: 4/6KV. Protection level: IP67. SCP/OTP/OVP protection. Life time>50,000 hrs. And 5 years warranty

the rated output  voltage. This error is the superposition value of line stability and load stability. Normally this parameter at  +/-1% line stability is the percentage of the output voltage that deviates from the rated voltage when the  input voltage varies between the maximum and minimum allowable range. Load stability is the  percentage of the output voltage that deviates from the rated voltage when the output load current  varies between the maximum and minimum allowable range. Efficiency: The ratio of total output power to active input power, expressed as a percentage. That is,  efficiency = output power/input power *100%. Rated power: refers to the maximum output power of the power supply (voltage V times current A). Electromagnetic compatibility (EMC) : the ability of a device or system to operate as required in its  electromagnetic environment without producing intolerable EMI to any device in its environment. EMC includes EMI(electromagnetic interference) and EMS(electromagnetic tolerance). The so-called EMI  electromagnetic interference refers to the harmful energy transmitted or radiated by the switching power  supply. And EMS refers to the ability of the switching power supply to be unaffected by the surrounding  electromagnetic environment in the process of performing its due functions. Ripple: as the dc stable power supply is generally formed by the ac power supply through rectifying and  voltage stabilizing links, it is inevitable that there are more or less ac components in the dc stable power.  The ac component superimposed on the dc stable power is called ripple. Output ripple and noise: the amplitude of the output ac voltage from the switching power supply within  a specified bandwidth, usually expressed as a millivolt level peak-to-peak or RMS value. Total Harmonic Distortion is refers to the signal source input, the output signal (harmonic and its  frequency doubling component) than the input signal of the additional harmonic component, usually  expressed as a percentage. Generally speaking, the total harmonic distortion of this frequency of 1000Hz  is the smallest, so many products take the distortion of this frequency as its index. So the test for total  harmonic distortion is 1000Hz sound, and the smaller the better. Overshoot and undershoot: Overshoot is when the first peak or valley value exceeds the set voltage -- the  highest voltage for the rising edge and the lowest voltage for the falling edge. Undershoot is the next  valley or peak. Excessive overshoot can cause the protective diode to work, leading to premature failure.  Excessive undershoot can cause false clock or data errors. Working environment temperature switch power supply can be reasonable electrical indicators and  stability of the working temperature range. Unless specified otherwise, do not assume that the switching  power supply can output full power throughout the temperature range, nor that the switching power  supply can maintain the same electrical specifications throughout the operating temperature range. Pulse Width Modulation (PWM) : a method of voltage regulation used in switching power supplies by  simply changing the period and duty cycle of the pulse train. I
